Anchor Audio Liberty 3 Wireless Sound System

The ultimate portable sound system for music and speech projection alike

Liberty 3 Features
and Tech Info
Liberty 3 Features
Speakers and
Accessories
Models & Accessories
Link 1
Liberty 3 Link 1
Link 2
Liberty 3 Link 2
Link 4
Liberty 3 Link 4
Hub
Liberty 3 Hub 1





Hub Connect 1
Liberty 3 Hub Connect 1
Hub Connect 2
Liberty 3 Hub Connect 2
Hub Connect 4
Liberty 3 Hub Connect 4
Dual Hub
Liberty 3 Dual Hub 1






Key Features

SPL
Max SPL
Max SPL
123dB
Crowd
Crowd size 1500 +
1500 +
people
Coverage
Coverage area 90' x 175'
Area
90'x175'
Speakers
Max SPL
10" woofer
Comp driver
Warranty
Max SPL
All products
6-4-2
Bluetooth
Class 1 Bluetooth
Class 1
150' range
Wireless
Wireless microphones
Up to
4 Mics
Wired
Wired microphones
Up to
2 Mics
Battery
Playtime 7+ hrs
Playtime
7+ hours
Weight
Weight
46 pounds
(no mics)
Size
Size handle down
24"x16"x16"
handle down
Special Features

AnchorDSP technology integrated in all Liberty 3 speakers takes high-fidelity music and outstanding voice reproduction sound quality to new levels. Incredibly easy to use, efficient, it includes white noise reduction and is powered by a 200 watts class D backbone amplifier that delivers 120dB SPL.

Bluetooth is standard on all Liberty 3 speakers. A strong class 1 Bluetooth connection with a 150' range provides for uninterrupted play. Pair any Bluetooth device for playback on an Liberty 3 speaker quickly and easily. Once a device is paired, the speaker will store it for even faster future connections.

AnchorLink2 is Anchor Audio's proprietary wireless microphone technology allowing for up to four wireless microphones to be used simultaneously with a 300'+ line of sight range. Automatic frequency hopping ensures an effortlessly clear transmission without having to manually change the channel.
Wireless microphone styles include handheld or belt-pack with headset, collar and lapel microphones. Handhelds and belt-packs feature user friendly remote volume up/down control and mute function without the need to return to the main speaker.

AnchorFlex is the world's first battery powered PA broadcast audio transceiver connecting multiple Hub speakers cable-free, in stereo or mono, up 300' away from each other. AnchorFlex is integrated in all Liberty 3 Hub speakers allowing for up to 1000 systems running mono on the same network (stereo mode only two speakers).

AnchorPower is the heart of Liberty 3. The best-in-class batteries and energy management features power the system all day. AnchorPower features a 1:1 charging ratio, so one hour of charging equals one hour of playtime. If the system is charged up before storing it, AnchorPower will stay fully charged until next use.

Design Rugged, weatherproof case keeps electronics safe and still allows for plug in of components when weather is bad. With heavy-duty wheels designed to go off-pavement, telescoping handle, and flush, built-in grips to easily move the speaker around.

Warranty Anchor Audio's 6-4-2 Warranty covers: All speaker systems for 6 years, Lithium-ion batteries for 4 years, and microphones and peripheral products for 2 years.

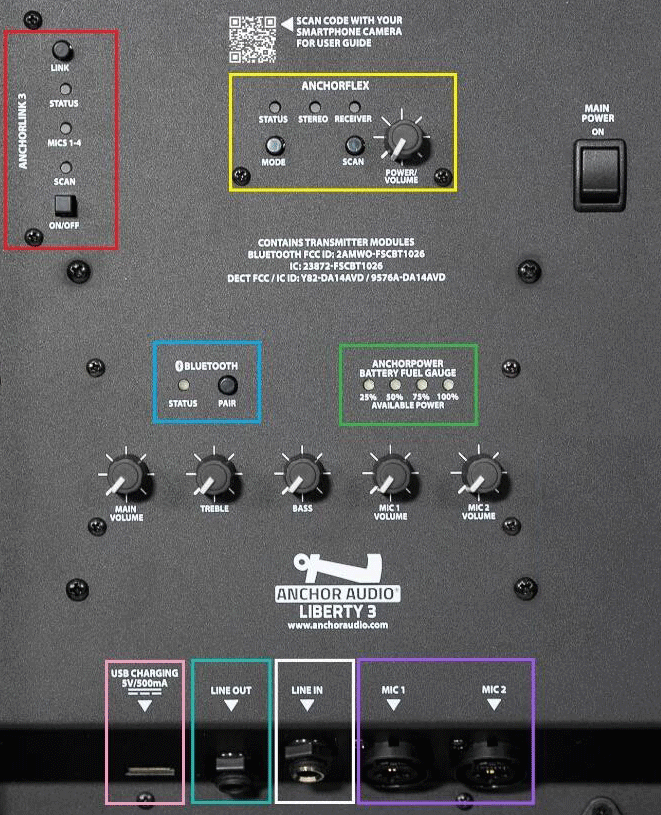

Downloads: User manual.  Exerpts from User manual: Technical Data;  Control panel;  System Placement
