About AN-1000X+ Presentation Systems

The AN-1000X+ series presentation systems by Anchor Audio deliver up to 107 dB of clear sound and are perfect for speech projection in classrooms and conference rooms up to 3,000 square feet in size. Operation is easy as the front panel is equipped with a simple volume, bass, and treble control.

AN-1000X+ front panel

All AN-1000X+ models are equipped with a configurable balanced Mic/Line female XLR input connector. Wired microphones such as the Anchor Audio dynamic MIC-90 or other types of microphones requiring phantom power may be used as well. External audio presentation sources, laptops, CD/tape or MP3 players may be connected via separate RCA and/or 1/4" line input jacks.

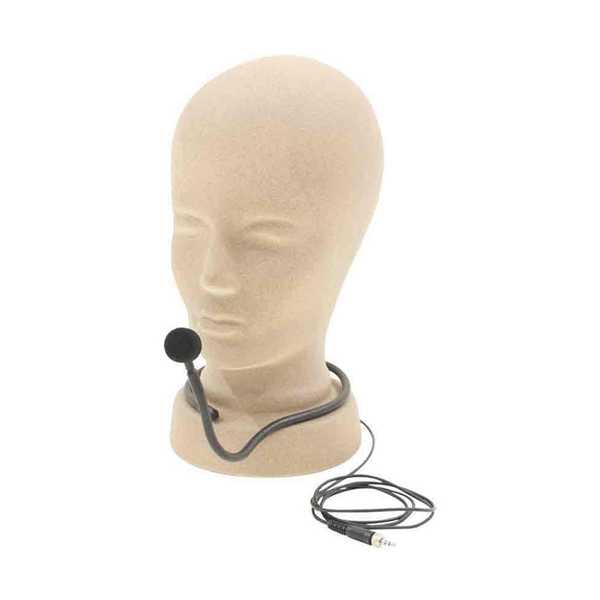

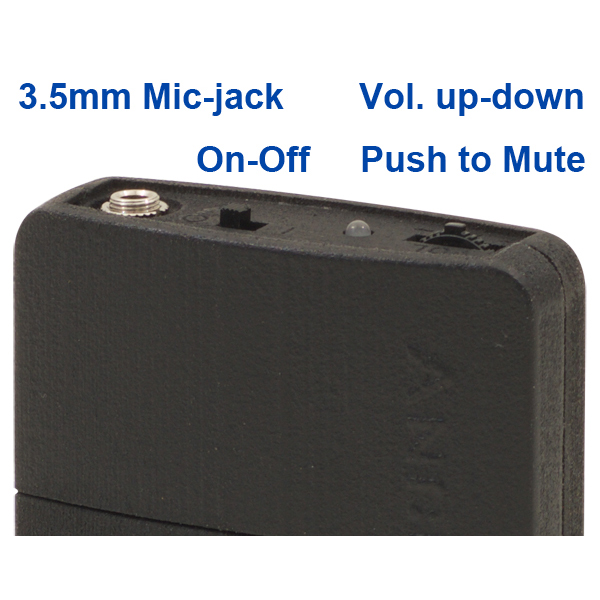

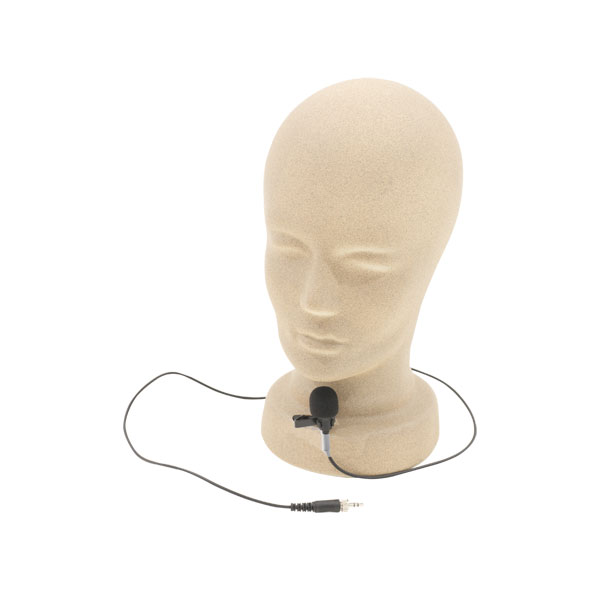

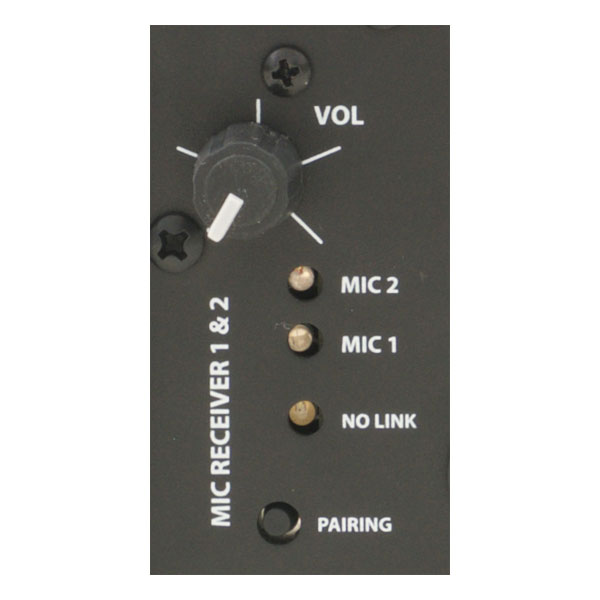

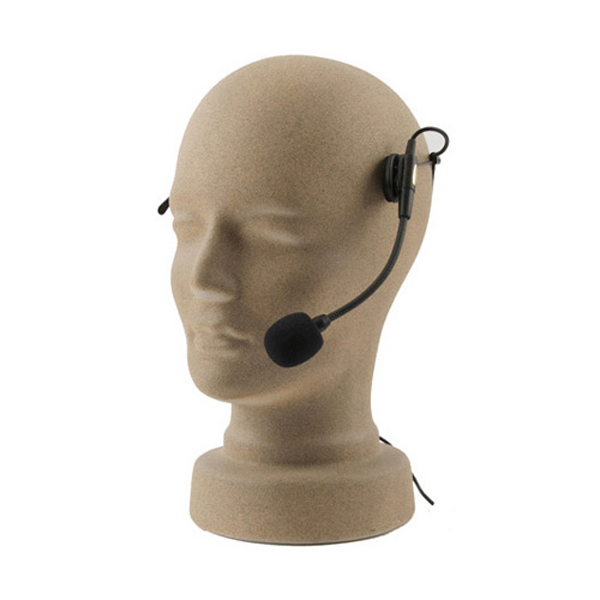

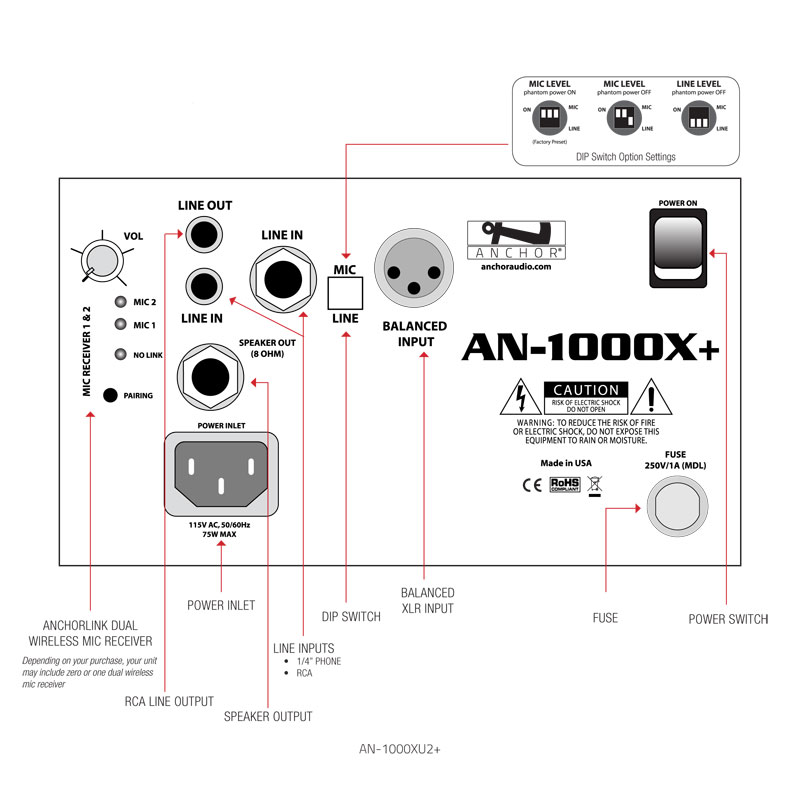

LINK Wireless Microphone System: AN-1000XU2+ rear panel The AN-1000XU2 version is equipped with one factory installed dual wireless microphone receiver. Any two LINK microphones can be paired with the receiver. Pairing is a one-time function. The handheld WH-LINK as well as the belt pack WB-LINK incorporate a volume and mute control so adjustments can be made on the spot rather than having to go to the main unit. The new LINK belt pack microphones feature a 3.5 mm locking plug. Handheld, headband, lapel and, collar microphone is available with all SYSTEM 1 packages. Transmission range is 150+ ft line of sight.

Accessories. Several optional brackets are available. These include the SB-3BK+ 40° tilt ceiling mount bracket and SB-360BK+ 360° swivel wall mount bracket. To view these items along with floor stands, carry bags and other available accessories, click on the "AN-1000X+ Itemized" tab.
