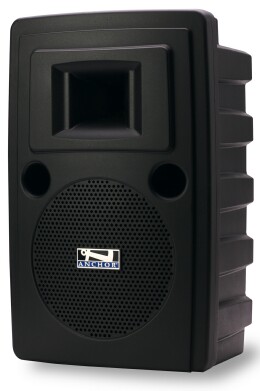

The Anchor Audio Liberty Platinum battery powered sound system may have optional
installation of one or two wireless receivers and MP3 or CD player. This makes the Liberty Platinum series the perfect choice for sound projection applications in
indoor or outdoor settings. Separate bass and treble controls gives the user full control over the sound projection. A "Voice Over" music ducking feature
ensures crystal clear voice projection when background music is played. With it's true AC/DC, 8 hour run time, 110/220 power supply,  weather resistant speaker
cone and UV treated - fade resistant case, the Liberty is designed to go wherever there is a need for a powerful wireless sound
system.
Wireless UHF Microphones: Liberty sound systems may be equipped with
one or two optional factory installed wireless UHF receivers. In addition, a third outboard wireless receiver can be
added and powered directly from a jack on the rear panel. The wireless UHF microphone transmitters are available in a handheld
version and/or a body-pack equipped with choice of lapel mic, collar mic, headband mic, or, a barely seen
over the ear UltraLite microphone. To avoid potential interference should several wireless sound systems be employed in close
proximity, all UHF components have 16 agile user selectable channels. Typical transmission range is 300 ft.
MP3/CD Player: The standard MP3 player features all the controls of a conventional MP3 player and accepts SD Card and USB Flash Drive (max. 1GB). In addition, the MP3 player is equipped with a 3.5 mm mini-jack for other audio
sources such as iPods, lap tops, etc. The optional CD player includes a remote control.
Additional Inputs: All Liberty sound systems feature two balanced XLR phantom powered microphone
inputs and one line input. The Line input is accessible through a 1/4" jack, a 3.5 mm mini stereo jack and two conventional RCA connectors. Each of the three inputs have a separate volume controls providing
the user full control over the mix.
Voice over Music: As the ideal portable PA system, the Liberty incorporates a Voice
over music feature that allows the speaker to clearly be heard over music playback. When a microphone input is activated,
the line level input (usually background music from the MP3 player or external MP3/CD player) automatically is attenuated 12 dB.
Outputs: With a rated output of 125 watts AC / 100 watts DC, the Liberty has plenty of power to drive
a wired unpowered companion loudspeaker from a SpeakOn type output jack. A simple 1/4" line-out to to line-in connection makes
it easy to daisy-chain Liberty sound systems for expanded coverage. However, with the use of wireless microphones there is no limit to how many wireless Liberty systems may be employed, as long as these are placed within the transmission range of the wireless microphones. If music playback is desired for multiple
wireless speaker applications, a special patch cord allows for hookup between a CD/cassette recorder and the belt-pack transmitter. A USB port is provided for charging of an iPods, cell phones etc.
For added flexibility, the Liberty is also equipped with user adjustable bass and treble controls.
Power: The standard Liberty Platinum system is truly versatile with true AC/DC power supply
and improved battery life of 6-8 hours of operating time on two 12 volt 9 AH rechargeable batteries. Recharge time to 80% capacity is 7 to 8 hours . Recharge time to full capacity is minimum 18 hours. The Liberty can also operate from a 12 volt power source such as an auto power port. An LED displays battery
level and charge condition. Optionally, all Liberty models are now available in a "AC only" version. This option offers substantial savings over AC/DC models. |
- Reaches crowds up to 1500+
- True AC/DC, 110/220V power supply
- 124W AC mode/ 100W DC mode
- Up to two built-in 16 channel UHF wireless receivers
- "Voice Over" music ducking feature
- Two universal mic input jacks
- Bass and treble controls
- Optional built-in MP3 player accepts SD card
- Optional built-in CD player with remote control
- External speaker output powers the LIB-7501 companion speaker
- 1/4" line input
- 1/4" line output
- Charging LED bar indicator
- 5V USB charging port
- UV treated/fade resistant case
- Recessed back panel protects knobs and parts
|
- Rated Power Output 124 watts AC / 100 watts DC
- Max SPL @ Rated Power 110 dB
- Battery: Two 12 V, lead acid rechargeable, 9.0 AH
- Full recharge: approx 18 hours
- Frequency Response 60 Hz – 15 kHz ± 3dB
- Mic Inputs:
Lo-Z (1 Kohm), balanced, XLR
12 VDC condenser mic (phantom) power
Hi-Z (10 Kohms), unbalanced, 1/4” phone -
Hi-Z (10 Kohms), unbalanced, 1/8” stereo, 1/4” phone
- Line In/Out unbalanced, stereo RCA
- Line Output (post fader) isolated, 600 ohms, 1/4” phone
- Sensitivity For Rated Output:
Lo-Z Microphone -52 dBV (2.5 mVrms)
Hi-Z Microphone -43 dBV (7.5 mVrms)
Auxiliary (line) -14 dBV (200 mVrms)
- Phantom Power 36V
- Speaker Out 4-pole Neutrik Speakon® jack
- AC Power Reqs. 100 – 240 VAC, 50/60 Hz, 300W max
- DC Out 12V 500mA
- USB 5V 500mA
- Dimensions (HWD) 22” x 14” x 11.5” (56 x 35.6 x 29.2 cm)
- Weight (AC/DC) 38 lbs / 17 Kg
- Weight (AC only) 26 lbs / 12 Kg
|
Anchor Audio products are warranted to be free from defects in materials and workmanship for a period of 6 years from the date of original purchase unless listed below:
Warranty Statement
a. All microphones, belt pack transmitters, and wood products (Seville & Admiral) shall be warranted for a 2 year period.
b. Batteries in the Beacon, Liberty Platinum, MegaVox Pro, Explorer Pro and Acclaim sound systems shall be warranted for a 2 year period.
c. PortaCom / ProLink 500 headsets / belt packs and CouncilMAN bases / mics shall be warranted for a 2 year period.
d. Little Big Horn shall be warranted for a two year period.
e. Built-in MP3 or CD players shall be warranted for a 2 year period.
And all warranties are subject to the following conditions:
f. The product must have been purchased from an authorized Anchor Audio Dealer and have an Anchor Audio serial number.
g. Anchor Audio must perform all warranty service. Any service performed without Anchor Audio's authorization will void the entire warranty.
h. This warranty does not cover any product that has been subjected to negligent use including considerate damage, connection to an improper power source, misuse, or operated beyond its manufactured specifications and limits, or has not been reasonably maintained.
j. Warranty shall not apply to batteries (other than those mentioned above), exterior finish, AC power cords, bulbs, or any other failings due to normal wear.
k. Warranty is void when equipment is subjected to adverse temperature, humidity, moisture, or other conditions that are not considered normal environmental conditions.
l. This warranty excludes all damages or defects caused by shipping transportation, or incorrectly packing for shipment.
|
