Anchor Audio MiniVox Lite    aka AN-MINI

For package deals, click on icons.

Lite-BP ECO 1
MiniVox LITE BP
Lite-DP PRO 1
MiniVox LITE DP
AN-MiniDP SYS 1
AN-MINI DP
MiniVox Itemized
MiniVox Models & Accessories
All about MiniVox
All about MiniVox











Key Features

All about MiniVox Lite PA System

The battery powered MiniVox Lite by Anchor Audio delivers up to 100 dB of clear sound and is perfect for speech projection in indoor or outdoor settings. Operation is simple. A volume control with on/off switch and a Mic Boost button constitute the only user operated controls. When pushed in, the Mic Boost adds a boost to your voice when speaking to a larger crowd in a noisy environment.MiniVoxLite User Equipped with a shoulder strap and weighing in at less than four pounds, the MiniVox Lite is the perfect PA system for users who demand a convenient portable package with big sound. The AN-MINI version can be placed on an optional SS-300 speaker stand for optimal sound distribution.

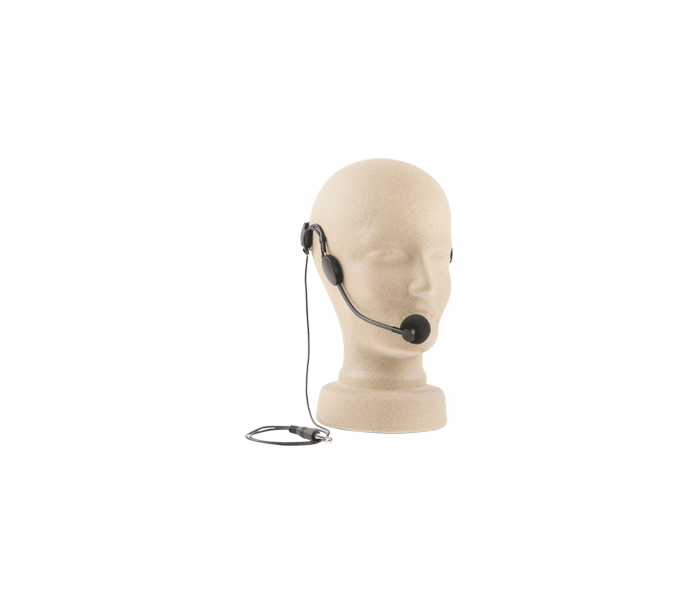

LINK Wireless Microphone Option : Deluxe packages are equipped with a factory installed dual wireless microphone receiver. Two LINK wireless microphones can be paired with one receiver. Pairing is a one-time function. The handheld WH-LINK as well as the beltpack WB-LINK incorporate a volume and mute control so adjustments can be made on the spot rather than having to go to the main unit. The new LINK beltpack microphones feature a 3.5 mm locking plug. Handheld, headband/lapel combo, collar and UltraLite over the ear microphone is available with all deluxe packages. Transmission range is 300+ ft line of sight.

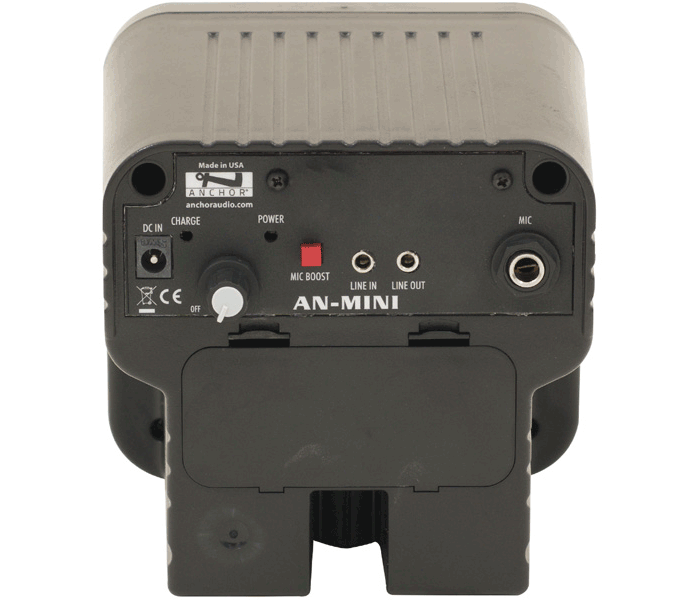

AN-Mini rear panel View

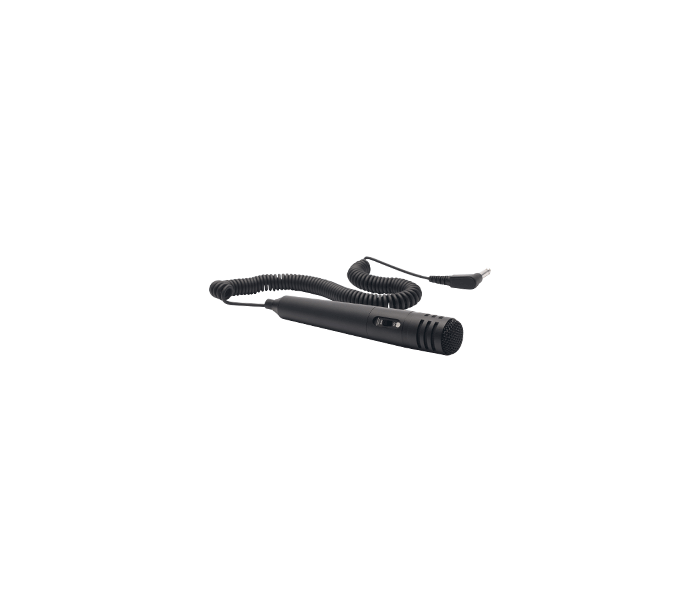

Inputs: All MiniVox Lite models are equipped with a handheld microphone with coiled cord connected to an unbalanced 1/4" Lo-Z microphone input jack. In addition, all models feature a 3.5 mm mini-jack line level input for use with an external CD/tape or MP3 players. Click on image to view gallery.

Outputs: A high-efficiency 4.5" neodymium woofer and a 30-watt amplifier makes the MiniVox Lite capable of delivering up to 109 dB SPL. A 3.5 mm line level output jack can be used for hookup to and assistive listening transmitter or a recording device. Although the MiniVox Lite is not equipped with an output for an external loudspeaker, greater sound distribution can be achieved with the use of a wireless microphone. Simply place multiple MiniVox Lite systems with built-in wireless receivers within the transmission range of the wireless microphone.

Power Source: The MiniVox Lite operates up to 12 hours on fully charged batteries (10 AA size 2500 mAh NiMH batteries). A charge jack permits recharging without removing the batteries. Charging time is 4-6 hours. The MiniVox Lite may be used while the AC charging adaptor is plugged in.
