MiniVox PB-25 Discontinued
The MiniVox PB-25 by Anchor Audio is no longer available. The system has been replaced with the MiniVox Lite tour guide PA. This page is maintained for microphone replacement parts availability and technical information purposes only.

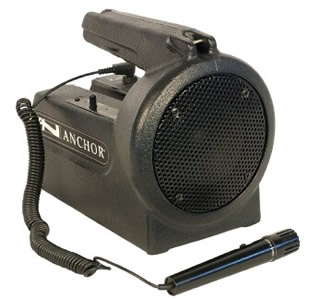

|The MiniVox from Anchor Audio delivers up to 108 dB
of clear sound and is perfect for speech projection in indoor or outdoor settings. Operation is simple. A volume control
with on/off switch constitute the only user operated control. Equipped with a shoulder strap and weighing in at less than
four pounds, the MiniVox is the perfect PA system for users who demand a convenient portable package with big sound.
Wireless UHF Microphone: MiniVox systems may be equipped with an optional built-in UHF wireless microphone receiver. The wireless microphone is available in a handheld version or a body-pack transmitter equipped with choice of lapel mic, collar mic, headband mic, or over the ear UltraLite microphone. To avoid potential interference should several wireless sound systems be employed in close proximity, all UHF components have 16 user selectable channels. Typical transmission range is 200 ft.
Inputs: All MiniVox models are equipped with a handheld microphone with coiled cord connected to an unbalanced 1/4" Lo-Z microphone input jack. A separate 3.5 mm mini-jack with phantom power permits use of other electret-type microphones such as the HBM-60 headband microphone. In addition, all models feature a 3.5 mm mini-jack line level input for use with an external CD/tape player or iPod (click on image to view input).
Outputs: A high-efficiency 4-inch neodymium woofer and a 18 watt amplifier makes the MiniVox capable of delivering up to 108 dB SPL. Although the MiniVox is not equipped with an output for an external loudspeaker, greater sound distribution can be achieved with the use of a wireless microphone. Simply place multiple MiniVox systems with built-in wireless receivers within the transmission range of the wireless microphone.
Power Source: The MiniVox runs 25-35 hours on a set of nine C-size alkaline batteries. An optional recharge kit consisting of a charging transformer and nine rechargeable batteries is also available. A charge jack permits recharging without removing the batteries.
Anchor Audio Warranty Statement: MiniVox is warranted to be free from defects in materials and workmanship for a period of SIX (6) YEARS from original date of purchase. All microphones and belt pack transmitters are warranted for a Two (2) Year period.
