Juno Speaker Packages and Accessories
FrontRow Juno Wireless Microphone Line Array System
Juno All-in-One Portable Sound System with amazing digital sound quality and infrared wireless microphones is designed for sound reinforcement in classrooms and meeting rooms of up to 35 people (expandable). An integrated ergonomic handle makes lifting and moving the Juno tower easy. The sturdy desk stand is easily removed should wall mounting be required. Juno is built with advanced FrontRow technology providing much clearer sound than conventional speaker systems.
The Speaker Line Array includes two mid-range/HF drivers and one woofer providing full, rich stereo sound. The array design ensures great coverage in typical room sizes up to 900 square feet with just one tower. For greater audio coverage, an optional expansion module can be added which allows for connection of up to six (6) additional speakers.
Juno’s SonicSuffusion™ technology keeps the two mid-range drivers and the bass module in phase thus reproducing the audio at peak efficiency. The sound energy that conventional and flat-panel loudspeakers waste are redirected forward and to the sides in a 180° horizontal layer. This arc of sound spreads more evenly across the room and reduces unwanted echo. The sound level from the Juno tower drops significantly less with distance than that of conventional speakers, thus providing a comfortable listening environment for every one.
The Adapto™ Engine digitally scans your audio 375 per second to wipe out harsh squealing feedback before you and your audience can hear it — that means you can get the volume you need and still move freely throughout the classroom.
The Juno Tower Sensor features a integrated high sensitivity infrared diode array covering a typical classroom without the need for additional sensors. However, two additional sensor ports are available for adding wall or ceiling sensors when used in larger or odd shaped rooms.
Wireless Infrared Microphones. Both Pendant and Pass-around microphones feature amazing sound quality with FrontRow's ClearVoice™ digital synthesis technology. The microphones uses a single cardioid microphone element to deliver superb pickup and audio quality. Combined with a high-isolation and open air microphone suspension, the ITM-01 minimizes noise from friction against clothing, buttons or jewelry. Both microphones can also transmit audio from any secondary audio source such as a computer or MP3 player through their 3.5mm audio input jack. Furthermore, the pendant microphone is equipped with a large one-touch button. When used with voice command, it activates the Juno lesson capture software and controls your Juno Tower.
Tower controls. A full-color touch screen puts the daily system controls at one easy-to-find place. The home screen features Master Volume Up and Down buttons with a display of the current volume setting, as well as a Master Mute button. The control panel also includes the following three menus located at the bottom of the display:
1. The Device Volume Menu lets the user set the individual volume of each device connected to the Juno Tower.
2. The Microphone Volume Menu lets the user customize the volume setting of each microphone used with the Juno Tower. Note: When using the optional FrontRow Desktop or Teacher Edition software, devices and microphones used with the Juno system can be renamed for easier identification.
3. The Settings Menu lets the user customize some of the Juno Tower's available features including: Optivoice™ - a powerful tool for test taking; PrioriTeach™ - automatic volume reduction of all audio sources with voice activation of the primary pendant microphone; Voice Command - executes functions from a list of standard command; Restore Defaults - Restores the Juno Tower to factory defaults if necessary.
Juno Connections With a stereo quick connect located below the control panel, Juno is easily and quickly connected to an MP3 player or other audio device. All other connectors are conveniently located on the left side. These include three RCA stereo inputs for connecting to other classroom A/V equipment such as a DVD player, television or VCR. Remote controlling the Juno Tower can be achieved by connecting a USB cable to a computer running the FrontRow Desktop or Teacher Edition software application.
A 3.5mm output jack can be used for connecting personal FM systems for listeners with hearing impairment. Additionally, the Juno can be equipped with an optional channel expansion module (behind main cover) for use with up to five microphones with one Juno Tower.
IMC-01 Microphone Charger. The IMC-01 universal drop-In microphone charger keeps teacher and student microphones tidy and charged. The two charging pockets can be used to charge any combination of pendant and pass-around microphones. The IMC-01 charger is convenient but not a "must have" as each microphone can be charged separately from any USB port with a USB-Micro cable.
Lesson Capture. The Teacher Edition Capture makes lesson capture and sharing effortless! Records screen and audio, then automatically titles the recording based on the instructor’s schedule and saves it to a predetermined location so students have instant digital content. Allows unlimited-length recording in the universal MP4 format. Great for flipped and blended learning, homework support, and effortless makeup work.
Teacher Edition is available with any FrontRow classroom audio system including Juno, Pro Digital, and ezRoom. When used with Juno and Juno Connect, Teacher Edition lets teachers initiate and stop recording with simple voice commands, and also open advanced setting options for your Juno hardware.

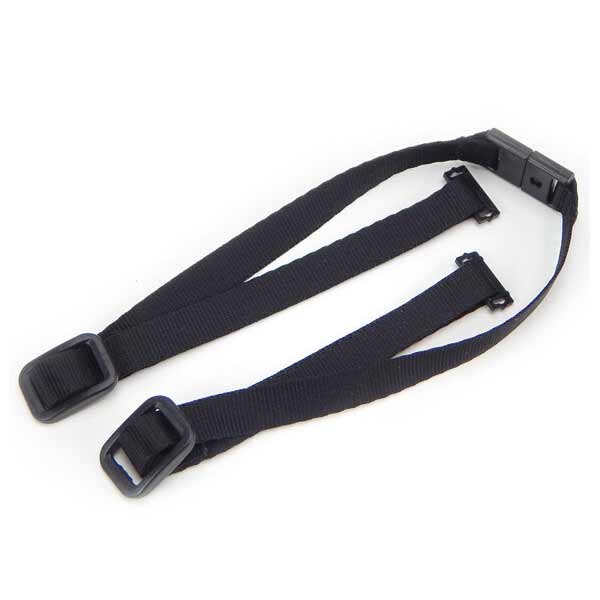

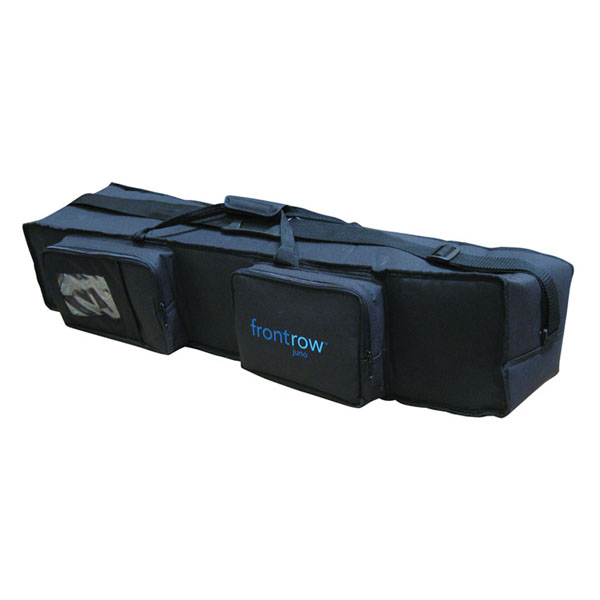

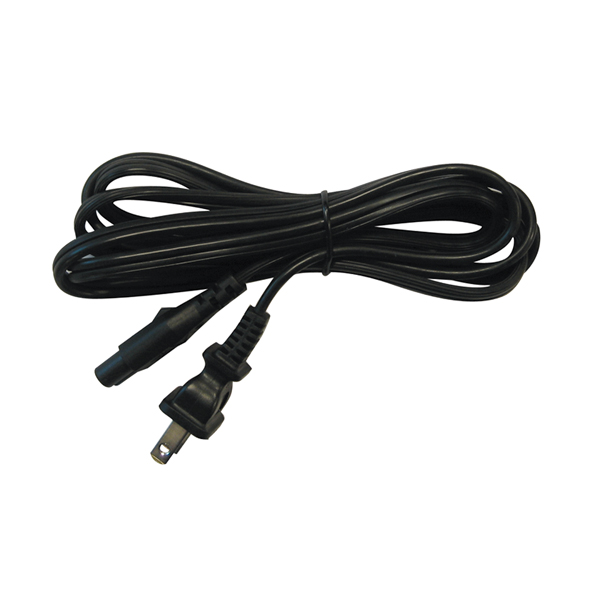

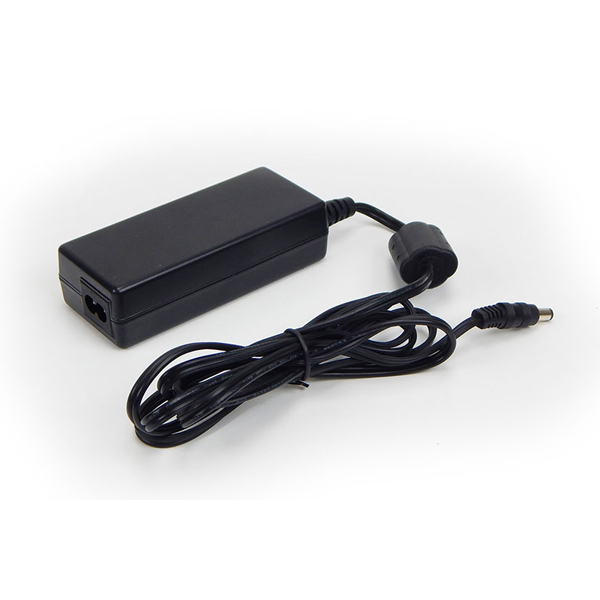

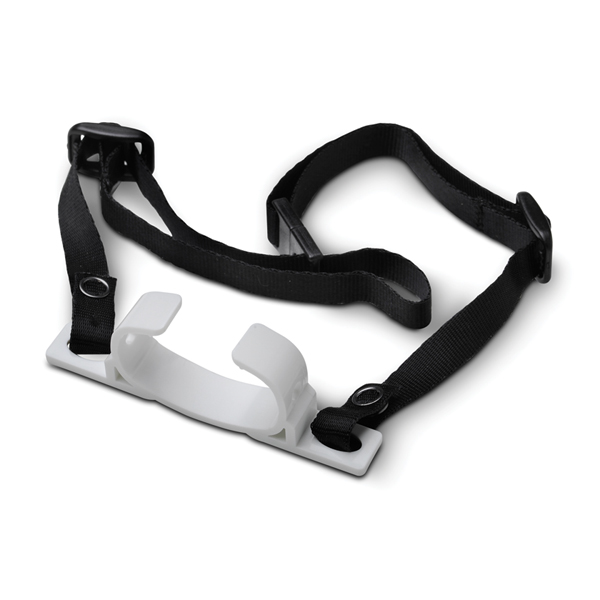

Juno Add-ons, Replacement Parts and Accessories
